Exclusive Discount π₯ Dual Electronics DS693 Car Speakers
Product reviews Dual Electronics DS693 Car Speakers
So you can check out the other reviews Black Friday - 80% OFF Dual Electronics DS693 Car Speakers at Amazon.com
only with $42.60

| Speaker Type | Surround Sound |
| Brand | Dual Electronics |
| Mounting Type | Coaxial,Car |
| Color | Bl/Chr |
| Item Dimensions LxWxH | 16.4 x 11.2 x 5.6 inches |
- High-strength ABS grille
- Black chromed polypropylene cones
- Black foam surrounds
- Black stamped steel baskets
- Rubber magnet boots
- Black Chrome PP Cone
- 1" Mylar Dome Tweeter
Product Description
Product Description

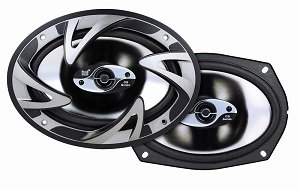

DS693 6" x 9" 3-Way Coaxial Speakers
Mounting
1. Determine where the speakers will be mounted. Make sure the area is large enough for the speaker to mount evenly. Also ensure the mounting location is deep enough for the speaker to fit.
2. Refer to the specification chart to determine the proper diameter hole to cut for your speaker model.
3. If needed, use the grille as a template to mark the locations for the mounting screws. Drill the holes with a 3/32" bit.
4. Be sure to observe proper polarity when connecting the wires. The speaker's positive terminal is indicated with a "+" symbol.
5. Fit the speaker to the hole cut-out. Mount the speaker using the supplied screws. If the speaker grill is to be used, insert 4 screws into the grill holes and then mount the speaker.
Features
6.5" 3-Way Coaxial Speaker
1" Black Mylar Tweeter
Black Foam Surround
Black Chrome PP Cone
Specifications
150 Watts Peak (IPP)
75 Watts (RMS)
Sensitivity: 91 dB
Nominal Impendance: 4 Ohms
Freq. Responde: 60 Hz-20kHz
| Specifications Guide | DS42 | DS52 | DS652 | DS692 | DS573 | DS653 | DS693 |
|---|---|---|---|---|---|---|---|
| Mounting Height | .38" | .44" | .38" | .38" | .40" | .40" | .40 |
| Top-Mounting Depth | 2.25" | 3.06" | 2.00" | 3.00" | 2.10" | 2.10" | 2.68" |
| Tweeter Protrusion | .25" | .31" | .25" | .19" | .30" | .30" | .30" |
| Bottom-Mounting Depth | 2.00" | 2.75" | 2.30" | 3.31" | 2.40" | 2.40" | 2.98" |
| Cut-out Diameter | 3.63" | 4.56" | 5.63" | 6.00" x 8.69" | 5.00" x 7.13" | 5.63" | 5.88" x 8.69" |
| Sensitivity (dB) | 86 | 86 | 86 | 88 | 90 | 89 | 91 |
| Frequency Response | 85Hz-20kHz | 85Hz-20kHz | 85Hz-20kHz | 70Hz-20kHz | 70Hz-20kHz | 75Hz-20kHz | 60Hz-20kHz |
| RMS Power Rating | 50 | 50 | 50 | 60 | 60 | 60 | 75 |
| Peak Power Rating | 100 | 100 | 100 | 120 | 120 | 120 | 150 |
Amazon.com
Bring the noise when you match your thumping car stereo system with this pair of Dual DS693 two-way speakers, which can handle up to 75 watts of RMS power (150 watts peak). These oblong speakers measure 6 by 9 inches and feature a black chromed polypropylene cone, 1-inch black mylar dome tweeter, high-strength ABS grill with futuristic two-tone styling, black foam surround, rubber magnet boot, and black stamped-steel basket.
Tech Talk RMS versus Peak Power: Peak power is measured by a brief musical burst (such as a crashing cymbal) and refers to the maximum amount of power that a device can produce from such a burst. However, a more reliable specification is RMS (root square mean) power, which measures the maximum continuous power that an audio device can produce. With a higher RMS figure, your music will sound cleaner as well as louder.
What's in the Box Two car stereo speakers

----------------------------
